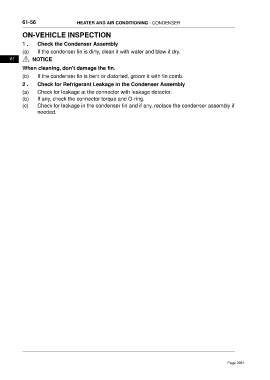

61-56 HEATER AND AIR CONDITIONING - CONDENSER
ON-VEHICLE INSPECTION
1 . Check the Condenser Assembly
(a) If the condenser fin is dirty, clean it with water and blow it dry.
61 NOTICE
When cleaning, don't damage the fin.
(b) If the condenser fin is bent or distorted, groom it with fin comb.
2 . Check for Refrigerant Leakage in the Condenser Assembly
(a) Check for leakage at the connector with leakage detector.
(b) If any, check the connector torque and O-ring.
(c) Check for leakage in the condenser fin and if any, replace the condenser assembly if
needed.
