P. 2054

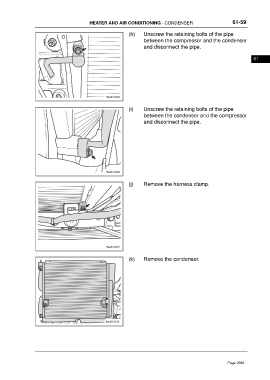

HEATER AND AIR CONDITIONING - CONDENSER 61-59
(h) Unscrew the retaining bolts of the pipe
between the compressor and the condenser
and disconnect the pipe.
61
(i) Unscrew the retaining bolts of the pipe
between the condenser and the compressor
and disconnect the pipe.
(j) Remove the harness clamp.
(k) Remove the condenser.
