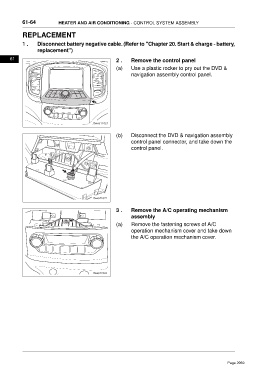

61-64 HEATER AND AIR CONDITIONING - CONTROL SYSTEM ASSEMBLY

REPLACEMENT

1 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
61
2 . Remove the control panel
(a) Use a plastic rocker to pry out the DVD &
navigation assembly control panel.

ftwx611021

(b) Disconnect the DVD & navigation assembly
control panel connector, and take down the
control panel.

ftwx611022

3 . Remove the A/C operating mechanism
assembly
(a) Remove the fastening screws of A/C
operation mechanism cover and take down
the A/C operation mechanism cover.

ftwx611023
