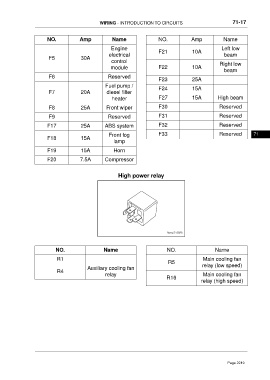

WIRING - INTRODUCTION TO CIRCUITS 71-17
NO. Amp Name NO. Amp Name
Engine Left low
electrical F21 10A beam
F5 30A
control Right low
module F22 10A
beam
F6 Reserved
F23 25A
Fuel pump /
F24 15A
F7 20A diesel filter
heater F27 15A High beam
F8 25A Front wiper F30 Reserved
F9 Reserved F31 Reserved
F17 25A ABS system F32 Reserved
Front fog F33 Reserved 71
F18 15A
lamp
F19 15A Horn
F20 7.5A Compressor
High power relay
NO. Name NO. Name
R1 Main cooling fan
R5
Auxiliary cooling fan relay (low speed)
R4
relay Main cooling fan
R16
relay (high speed)
