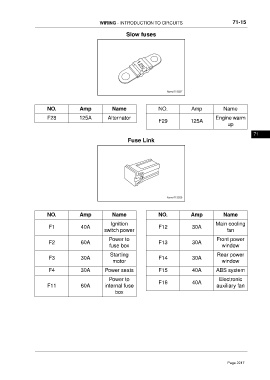

WIRING - INTRODUCTION TO CIRCUITS 71-15
Slow fuses
NO. Amp Name NO. Amp Name
F28 125A Alternator Engine warm
F29 125A
up
71
Fuse Link
NO. Amp Name NO. Amp Name
Ignition Main cooling
F1 40A F12 30A
switch power fan
Power to Front power
F2 60A F13 30A
fuse box window
Starting Rear power
F3 30A F14 30A
motor window
F4 30A Power seats F15 40A ABS system
Power to Electronic
F16 40A
F11 60A internal fuse auxiliary fan
box
