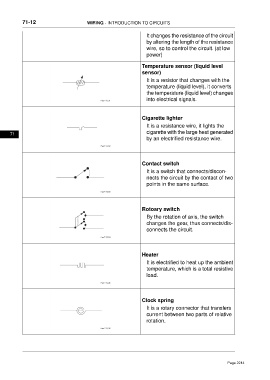

71-12 WIRING - INTRODUCTION TO CIRCUITS

It changes the resistance of the circuit
by altering the length of the resistance
wire, so to control the circuit. (at low
power)

Temperature sensor (liquid level
sensor)
It is a resistor that changes with the
temperature (liquid level), it converts
the temperature (liquid level) changes
into electrical signals.

Cigarette lighter
It is a resistance wire, it lights the
cigarette with the large heat generated
71
by an electrified resistance wire.

Contact switch
It is a switch that connects/discon-
nects the circuit by the contact of two
points in the same surface.

Rotoary switch

By the rotation of axis, the switch
changes the gear, thus connects/dis-
connects the circuit.

Heater

It is electrified to heat up the ambient
temperature, which is a total resistive
load.

Clock spring
It is a rotary connector that transfers
current between two parts of relative
rotation.
