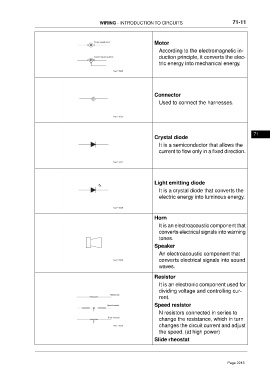

WIRING - INTRODUCTION TO CIRCUITS 71-11

Motor
According to the electromagnetic in-
duction principle, it converts the elec-
tric energy into mechanical energy.

Connector
Used to connect the harnesses.

71
Crystal diode
It is a semiconductor that allows the
current to flow only in a fixed direction.

Light emitting diode
It is a crystal diode that converts the
electric energy into luminous energy.

Horn
It is an electroacoustic component that
converts electrical signals into warning
tones.
Speaker
An electroacoustic component that
converts electrical signals into sound
waves.

Resistor
It is an electronic component used for
dividing voltage and controlling cur-
rent.

Speed resistor
N resistors connected in series to
change the resistance, which in turn
changes the circuit current and adjust
the speed. (at high power)
Slide rheostat
