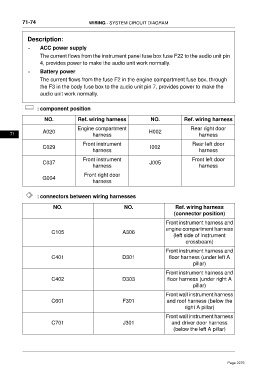

71-74 WIRING - SYSTEM CIRCUIT DIAGRAM

Description:

• ACC power supply
The current flows from the instrument panel fuse box fuse F22 to the audio unit pin
4, provides power to make the audio unit work normally.

• Battery power
The current flows from the fuse F2 in the engine compartment fuse box, through
the F3 in the body fuse box to the audio unit pin 7, provides power to make the
audio unit work normally.

: component position

NO. Ref. wiring harness NO. Ref. wiring harness

Engine compartment Rear right door
A020 H002
71 harness harness
Front instrument Rear left door
C029 I002
harness harness
Front instrument Front left door
C037 J005
harness harness

Front right door
G004
harness

: connectors between wiring harnesses

NO. NO. Ref. wiring harness
(connector position)
Front instrument harness and
engine compartment harness
C105 A306
(left side of instrument
crossbeam)
Front instrument harness and
C401 D301 floor harness (under left A
pillar)
Front instrument harness and
C402 D303 floor harness (under right A
pillar)

Front wall instrument harness
C601 F301 and roof harness (below the
right A pillar)

Front wall instrument harness
C701 J301 and driver door harness
(below the left A pillar)
