P. 2280

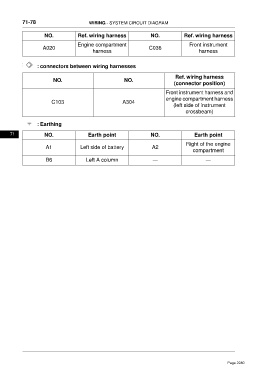

71-78 WIRING - SYSTEM CIRCUIT DIAGRAM
NO. Ref. wiring harness NO. Ref. wiring harness
Engine compartment Front instrument
A020 C036
harness harness
: connectors between wiring harnesses
Ref. wiring harness
NO. NO.
(connector position)
Front instrument harness and
engine compartment harness
C103 A304
(left side of instrument
crossbeam)
: Earthing
71 NO. Earth point NO. Earth point
Right of the engine
A1 Left side of battery A2
compartment
B6 Left A column — —
