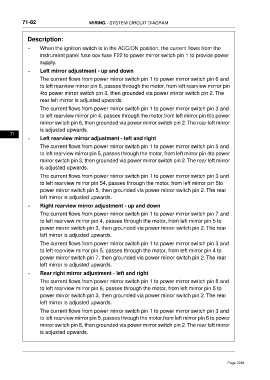

Page 2284 - Foton Workshop Manual - Tunland (AT)

71-82 WIRING - SYSTEM CIRCUIT DIAGRAM

Description:

• When the ignition switch is in the ACC/ON position, the current flows from the
instrument panel fuse box fuse F22 to power mirror switch pin 1 to provide power
supply.

• Left mirror adjustment - up and down
The current flows from power mirror switch pin 1 to power mirror switch pin 6 and
to left rearview mirror pin 6, passes through the motor, from left rearview mirror pin
4to power mirror switch pin 3, then grounded via power mirror switch pin 2. The
rear left mirror is adjusted upwards.
The current flows from power mirror switch pin 1 to power mirror switch pin 3 and
to left rearview mirror pin 4, passes through the motor,from left mirror pin 6to power
mirror switch pin 6, then grounded via power mirror switch pin 2.The rear left mirror
is adjusted upwards.
71
• Left rearview mirror adjustment - left and right
The current flows from power mirror switch pin 1 to power mirror switch pin 5 and
to left rearview mirror pin 5, passes through the motor, from left mirror pin 4to power
mirror switch pin 3, then grounded via power mirror switch pin 2.The rear left mirror
is adjusted upwards.
The current flows from power mirror switch pin 1 to power mirror switch pin 3 and
to left rearview mirror pin 54, passes through the motor, from left mirror pin 5to
power mirror switch pin 5, then grounded via power mirror switch pin 2. The rear
left mirror is adjusted upwards.

• Right rearview mirror adjustment - up and down
The current flows from power mirror switch pin 1 to power mirror switch pin 7 and
to left rearview mirror pin 4, passes through the motor, from left mirror pin 5 to
power mirror switch pin 3, then grounded via power mirror switch pin 2. The rear
left mirror is adjusted upwards.
The current flows from power mirror switch pin 1 to power mirror switch pin 3 and
to left rearview mirror pin 5, passes through the motor, from left mirror pin 4 to
power mirror switch pin 7, then grounded via power mirror switch pin 2. The rear
left mirror is adjusted upwards.

• Rear right mirror adjustment - left and right
The current flows from power mirror switch pin 1 to power mirror switch pin 8 and
to left rearview mirror pin 6, passes through the motor, from left mirror pin 5 to
power mirror switch pin 3, then grounded via power mirror switch pin 2. The rear
left mirror is adjusted upwards.
The current flows from power mirror switch pin 1 to power mirror switch pin 3 and
to left rearview mirror pin 5, passes through the motor,from left mirror pin 6 to power
mirror switch pin 8, then grounded via power mirror switch pin 2.The rear left mirror
is adjusted upwards.

Page 2284
