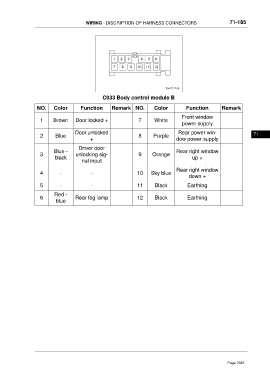

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-185
C033 Body control module B
NO. Color Function Remark NO. Color Function Remark
Front window
1 Brown Door locked + 7 White
power supply
Door unlocked Rear power win-
2 Blue 8 Purple 71
+ dow power supply
Driver door
Blue - Rear right window
3 unlocking sig- 9 Orange
black up +
nal input
Rear right window
4 - - 10 Sky blue
down +
5 - - 11 Black Earthing
Red -
6 Rear fog lamp 12 Black Earthing
blue
