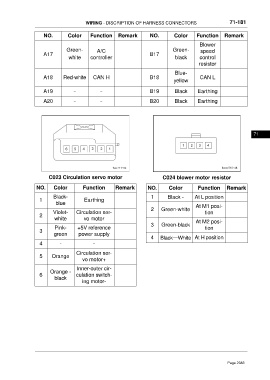

Page 2383 - Foton Workshop Manual - Tunland (AT)

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-181

NO. Color Function Remark NO. Color Function Remark
Blower
Green- A/C Green- speed
A17 B17
white controller black control
resistor
Blue-
A18 Red-white CAN H B18 CAN L
yellow

A19 – – B19 Black Earthing

A20 – – B20 Black Earthing

71

C023 Circulation servo motor C024 blower motor resistor
NO. Color Function Remark NO. Color Function Remark

Black- 1 Black - At L position
1 Earthing
blue At M1 posi-
2 Green-white
Violet- Circulation ser- tion
2
white vo motor At M2 posi-
3 Green-black
Pink- +5V reference tion
3
green power supply
4 Black—White At H position
4 - –

Circulation ser-
5 Orange
vo motor+
Inner-outer cir-
Orange -
6 culation switch-
black
ing motor-

Page 2383
