Page 2378 - Foton Workshop Manual - Tunland (AT)
P. 2378

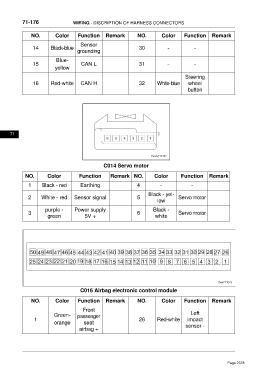

71-176 WIRING - DISCRIPTION OF HARNESS CONNECTORS
NO. Color Function Remark NO. Color Function Remark
Sensor
14 Black-blue 30 - -
grounding
Blue-
15 CAN L 31 – –
yellow
Steering
16 Red-white CAN H 32 White-blue wheel
button
71
C014 Servo motor
NO. Color Function Remark NO. Color Function Remark
1 Black - red Earthing 4 - -
Black - yel-
2 White - red Sensor signal 5 Servo motor
low
purple - Power supply Black -
3 6 Servo motor
green 5V + white
C016 Airbag electronic control module
NO. Color Function Remark NO. Color Function Remark
Front
Green- passenger Left
1 26 Red-white impact
orange seat
sensor -
airbag +
Page 2378
