P. 2373

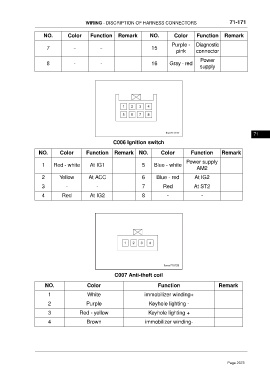

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-171
NO. Color Function Remark NO. Color Function Remark
Purple - Diagnostic
7 – – 15
pink connector
Power
8 - - 16 Gray - red
supply
71
C006 Ignition switch
NO. Color Function Remark NO. Color Function Remark
Power supply
1 Red - white At IG1 5 Blue - white
AM2
2 Yellow At ACC 6 Blue - red At IG2
3 - - 7 Red At ST2
4 Red At IG2 8 - -
C007 Anti-theft coil
NO. Color Function Remark
1 White immobilizer winding+
2 Purple Keyhole lighting -
3 Red - yellow Keyhole lighting +
4 Brown immobilizer winding-
