P. 2368

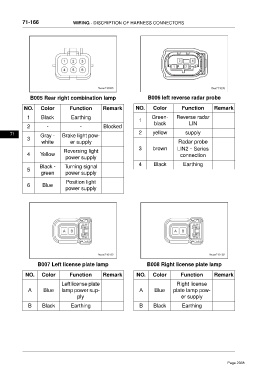

71-166 WIRING - DISCRIPTION OF HARNESS CONNECTORS
B005 Rear right combination lamp B006 left reverse radar probe
NO. Color Function Remark NO. Color Function Remark
1 Black Earthing Green- Reverse radar
1
2 - - Blocked black LIN
71 Gray - Brake light pow- 2 yellow supply
3
white er supply Radar probe
3 brown LIN2–Series
Reversing light
4 Yellow connection
power supply
4 Black Earthing
Black - Turning signal
5
green power supply
Position light
6 Blue
power supply
B007 Left license plate lamp B008 Right license plate lamp
NO. Color Function Remark NO. Color Function Remark
Left license plate Right license
A Blue lamp power sup- A Blue plate lamp pow-
ply er supply
B Black Earthing B Black Earthing
