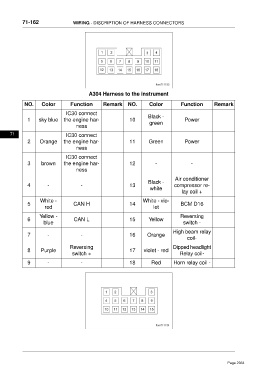

71-162 WIRING - DISCRIPTION OF HARNESS CONNECTORS

A304 Harness to the instrument

NO. Color Function Remark NO. Color Function Remark

IC30 connect
Black -
1 sky blue the engine har- 10 green Power
ness
71 IC30 connect
2 Orange the engine har- 11 Green Power
ness

IC30 connect
3 brown the engine har- 12 - -
ness

Air conditioner
Black -
4 - - 13 compressor re-
white
lay coil +
White - White - vio-
5 CAN H 14 BCM D16
red let
Yellow - Reversing
6 CAN L 15 Yellow
blue switch -

High beam relay
7 - - 16 Orange
coil-
Reversing Dipped headlight
8 Purple 17 violet - red
switch + Relay coil-

9 - - 18 Red Horn relay coil -
