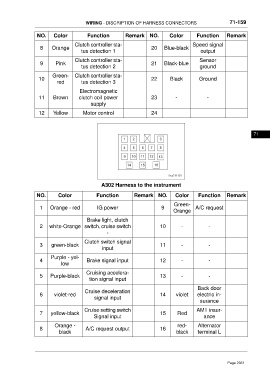

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-159
NO. Color Function Remark NO. Color Function Remark
Clutch controller sta- Speed signal
8 Orange 20 Blue-black
tus detection 1 output
Clutch controller sta- Sensor
9 Pink 21 Black-blue
tus detection 2 ground
Green- Clutch controller sta-
10 22 Black Ground
red tus detection 3
Electromagnetic
11 Brown clutch coil power 23 - -
supply
12 Yellow Motor control 24
71
A302 Harness to the instrument
NO. Color Function Remark NO. Color Function Remark
Green-
1 Orange - red IG power 9 A/C request
Orange
Brake light, clutch
2 white-Orange switch, cruise switch 10 - -
-
Clutch switch signal
3 green-black 11 - -
input
Purple - yel-
4 Brake signal input 12 – -
low
Cruising accelera-
5 Purple-black 13 - -
tion signal input
Back door
Cruise deceleration
6 violet-red 14 violet electric in-
signal input
surance
Cruise setting switch AM1 insur-
7 yellow-black 15 Red
Signal input ance
Orange - red- Alternator
8 A/C request output 16
black black terminal L
