P. 2356

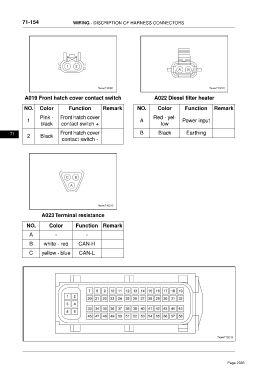

71-154 WIRING - DISCRIPTION OF HARNESS CONNECTORS
A019 Front hatch cover contact switch A022 Diesel filter heater
NO. Color Function Remark NO. Color Function Remark
Pink - Front hatch cover Red - yel-
1 A Power input
black contact switch + low
71 Front hatch cover B Black Earthing
2 Black
contact switch -
A023 Terminal resistance
NO. Color Function Remark
A - -
B white - red CAN-H
C yellow - blue CAN-L
