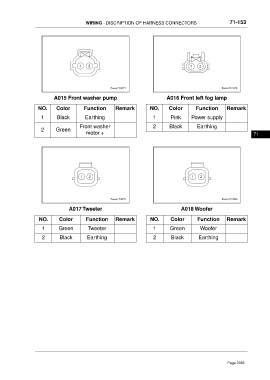

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-153
A015 Front washer pump A016 Front left fog lamp
NO. Color Function Remark NO. Color Function Remark
1 Black Earthing 1 Pink Power supply
Front washer 2 Black Earthing
2 Green
motor + 71
A017 Tweeter A018 Woofer
NO. Color Function Remark NO. Color Function Remark
1 Green Tweeter 1 Green Woofer
2 Black Earthing 2 Black Earthing
