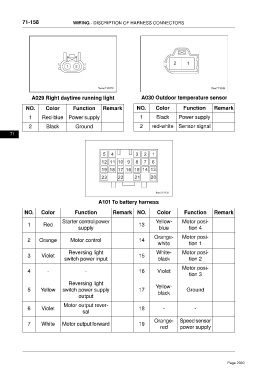

71-158 WIRING - DISCRIPTION OF HARNESS CONNECTORS
A029 Right daytime running light A030 Outdoor temperature sensor
NO. Color Function Remark NO. Color Function Remark
1 Red-blue Power supply 1 Black Power supply
2 Black Ground 2 red-white Sensor signal
71
A101 To battery harness
NO. Color Function Remark NO. Color Function Remark
Starter control power Yellow- Motor posi-
1 Red 13
supply blue tion 4
Orange- Motor posi-
2 Orange Motor control 14
white tion 1
Reversing light White- Motor posi-
3 Violet 15
switch power input black tion 2
Motor posi-
4 - - 16 Violet
tion 3
Reversing light
Yellow-
5 Yellow switch power supply 17 Ground
black
output
Motor output rever-
6 Violet 18 - -
sal
Orange- Speed sensor
7 White Motor output forward 19
red power supply
