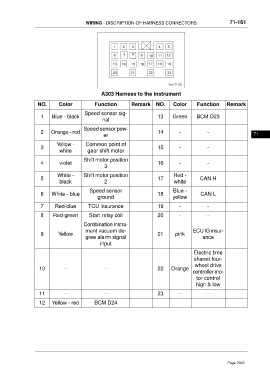

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-161
A303 Harness to the instrument
NO. Color Function Remark NO. Color Function Remark
Speed sensor sig-
1 Blue - black 13 Green BCM D23
nal
Speed sensor pow-
2 Orange - red 14 - -
er 71
Yellow - Common point of
3 15 - -
white gear shift motor
Shift motor position
4 violet 16 - -
3
White - Shift motor position Red -
5 17 CAN H
black 2 white
Speed sensor Blue -
6 White - blue 18 CAN L
ground yellow
7 Red-blue TCU insurance 19 - -
8 Red-green Start relay coil 20 - -
Combination instru-
ment vacuum de- ECU IG insur-
9 Yellow 21 pink
gree alarm signal ance
input
Electric time
shared four-
wheel drive
10 - - 22 Orange
controller mo-
tor control
high & low
11 - - 23 - -
12 Yellow - red BCM D24
