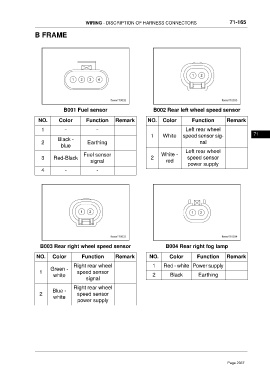

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-165
B FRAME
B001 Fuel sensor B002 Rear left wheel speed sensor
NO. Color Function Remark NO. Color Function Remark
1 – – Left rear wheel
1 White speed sensor sig- 71
Black -
2 Earthing nal
blue
Left rear wheel
Fuel sensor White -
3 Red-Black 2 speed sensor
signal red
power supply
4 - -
B003 Rear right wheel speed sensor B004 Rear right fog lamp
NO. Color Function Remark NO. Color Function Remark
Right rear wheel 1 Red - white Power supply
Green -
1 speed sensor
white 2 Black Earthing
signal
Right rear wheel
Blue -
2 speed sensor
white
power supply
