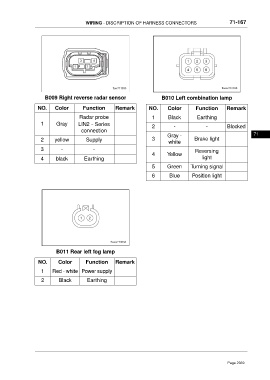

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-167
B009 Right reverse radar sensor B010 Left combination lamp
NO. Color Function Remark NO. Color Function Remark
Radar probe 1 Black Earthing
1 Gray LIN2–Series
2 - - Blocked
connection
Gray - 71
2 yellow Supply 3 Brake light
white
3 – – Reversing
4 Yellow
4 black Earthing light
5 Green Turning signal
6 Blue Position light
B011 Rear left fog lamp
NO. Color Function Remark
1 Red - white Power supply
2 Black Earthing
