P. 2370

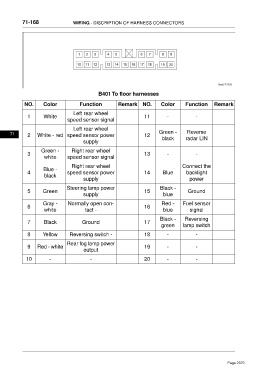

71-168 WIRING - DISCRIPTION OF HARNESS CONNECTORS
B401 To floor harnesses
NO. Color Function Remark NO. Color Function Remark
Left rear wheel
1 White 11 - -
speed sensor signal
Left rear wheel
71 2 White - red speed sensor power 12 Green - Reverse
supply black radar LIN
Green - Right rear wheel
3 13 – -
white speed sensor signal
Right rear wheel Connect the
Blue -
4 speed sensor power 14 Blue backlight
black
supply power
Steering lamp power Black -
5 Green 15 Ground
supply blue
Gray - Normally open con- Red - Fuel sensor
6 16
white tact - blue signal
Black - Reversing
7 Black Ground 17
green lamp switch
8 Yellow Reversing switch - 18 - -
Rear fog lamp power
9 Red - white 19 - -
output
10 - - 20 - -
