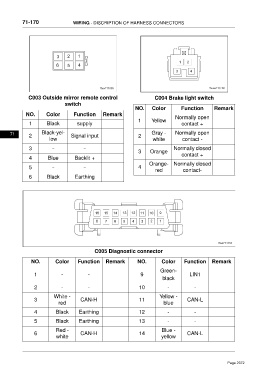

71-170 WIRING - DISCRIPTION OF HARNESS CONNECTORS

C003 Outside mirror remote control C004 Brake light switch
switch
NO. Color Function Remark
NO. Color Function Remark
Normally open
1 Yellow
1 Black supply contact +
71 Black-yel- Gray - Normally open
2 Signal input 2
low white contact -
3 – – Normally closed
3 Orange
contact +
4 Blue Backlit +
Orange- Normally closed
5 – – 4
red contact-
6 Black Earthing

C005 Diagnostic connector

NO. Color Function Remark NO. Color Function Remark

Green-
1 - - 9 LIN1
black

2 - - 10 - -
White - Yellow -
3 CAN-H 11 CAN-L
red blue

4 Black Earthing 12 - -
5 Black Earthing 13 - -

Red - Blue -
6 CAN-H 14 CAN-L
white yellow
