P. 2375

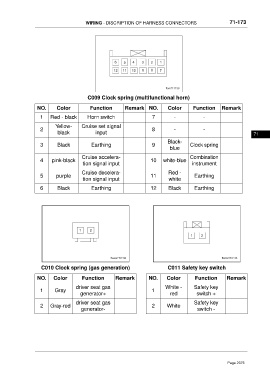

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-173
C009 Clock spring (multifunctional horn)
NO. Color Function Remark NO. Color Function Remark
1 Red - black Horn switch 7 - -
Yellow- Cruise set signal
2 8 - -
black input 71
Black-
3 Black Earthing 9 Clock spring
blue
Cruise accelera- Combination
4 pink-black 10 white-blue
tion signal input instrument
Cruise decelera- Red -
5 purple 11 Earthing
tion signal input white
6 Black Earthing 12 Black Earthing
C010 Clock spring (gas generation) C011 Safety key switch
NO. Color Function Remark NO. Color Function Remark
driver seat gas White - Safety key
1 Gray 1
generator+ red switch +
driver seat gas Safety key
2 Gray-red 2 White
generator- switch -
