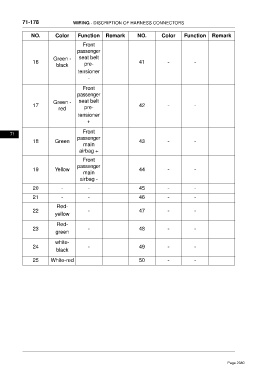

71-178 WIRING - DISCRIPTION OF HARNESS CONNECTORS

NO. Color Function Remark NO. Color Function Remark
Front
passenger
Green - seat belt
16 41 - -
black pre-
tensioner
-

Front
passenger
Green - seat belt
17 42 - -
red pre-
tensioner
+

Front
71
passenger
18 Green 43 - -
main
airbag +

Front
passenger
19 Yellow 44 - -
main
airbag -
20 - - 45 - -

21 - - 46 - -

Red-
22 - 47 - -
yellow

Red-
23 - 48 - -
green

white-
24 - 49 - -
black

25 White-red 50 - -
