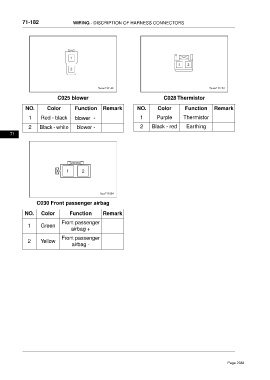

71-182 WIRING - DISCRIPTION OF HARNESS CONNECTORS
C025 blower C028 Thermistor
NO. Color Function Remark NO. Color Function Remark
1 Red - black blower ﹢ 1 Purple Thermistor
2 Black - white blower - 2 Black - red Earthing
71
C030 Front passenger airbag
NO. Color Function Remark
Front passenger
1 Green
airbag +
Front passenger
2 Yellow
airbag -
