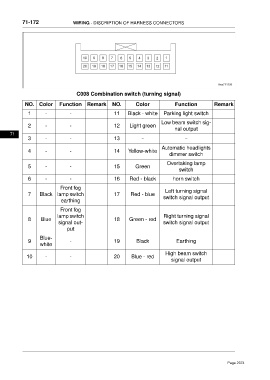

71-172 WIRING - DISCRIPTION OF HARNESS CONNECTORS
C008 Combination switch (turning signal)
NO. Color Function Remark NO. Color Function Remark
1 - - 11 Black - white Parking light switch
Low beam switch sig-
2 - - 12 Light green
nal output
71
3 - - 13 – –
Automatic headlights
4 - - 14 Yellow-white
dimmer switch
Overtaking lamp
5 - - 15 Green
switch
6 - - 16 Red - black horn switch
Front fog
7 Black lamp switch 17 Red - blue Left turning signal
switch signal output
earthing
Front fog
lamp switch Right turning signal
8 Blue 18 Green - red
signal out- switch signal output
put
Blue-
9 - 19 Black Earthing
white
High beam switch
10 - - 20 Blue - red
signal output
