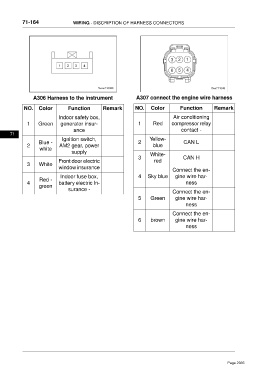

71-164 WIRING - DISCRIPTION OF HARNESS CONNECTORS
A306 Harness to the instrument A307 connect the engine wire harness
NO. Color Function Remark NO. Color Function Remark
Indoor safety box, Air conditioning
1 Green generator insur- 1 Red compressor relay
ance contact -
71
Ignition switch, Yellow-
Blue - 2 CAN L
2 AM2 gear, power blue
white
supply White-
3 CAN H
Front door electric red
3 White
window insurance
Connect the en-
Indoor fuse box, 4 Sky blue gine wire har-
Red -
4 battery electric In- ness
green
surance -
Connect the en-
5 Green gine wire har-
ness
Connect the en-
6 brown gine wire har-
ness
