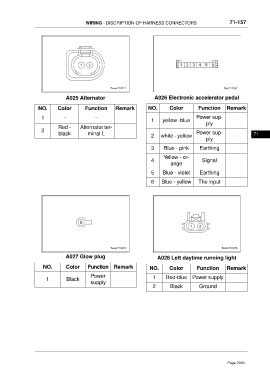

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-157
A025 Alternator A026 Electronic accelerator pedal
NO. Color Function Remark NO. Color Function Remark
1 – – Power sup-
1 yellow -blue
ply
Red - Alternator ter-
2
black minal L Power sup- 71
2 white - yellow
ply
3 Blue - pink Earthing
Yellow - or-
4 Signal
ange
5 Blue - violet Earthing
6 Blue - yellow The input
A027 Glow plug A028 Left daytime running light
NO. Color Function Remark NO. Color Function Remark
Power 1 Red-blue Power supply
1 Black
supply
2 Black Ground
