P. 2353

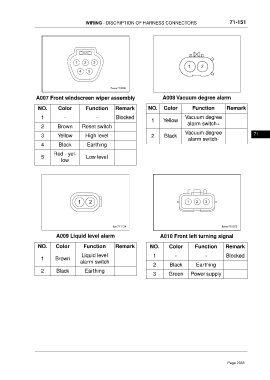

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-151
1 2
A007 Front windscreen wiper assembly A008 Vacuum degree alarm
NO. Color Function Remark NO. Color Function Remark
1 - - Blocked Vacuum degree
1 Yellow
2 Brown Reset switch alarm switch+
Vacuum degree
3 Yellow High level 2 Black 71
alarm switch-
4 Black Earthing
Red - yel-
5 Low level
low
A009 Liquid level alarm A010 Front left turning signal
NO. Color Function Remark NO. Color Function Remark
Liquid level 1 - - Blocked
1 Brown
alarm switch
2 Black Earthing
2 Black Earthing
3 Green Power supply
