P. 2348

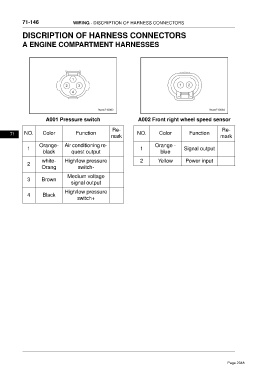

71-146 WIRING - DISCRIPTION OF HARNESS CONNECTORS
DISCRIPTION OF HARNESS CONNECTORS
A ENGINE COMPARTMENT HARNESSES
A001 Pressure switch A002 Front right wheel speed sensor
Re- Re-
71 NO. Color Function NO. Color Function
mark mark
Orange- Air conditioning re- Orange -
1 1 Signal output
black quest output blue
white- High/low pressure 2 Yellow Power input
2
Orang switch-
Medium voltage
3 Brown
signal output
High/low pressure
4 Black
switch+
