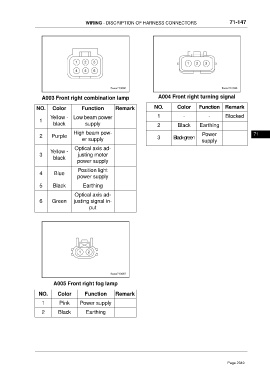

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-147
A003 Front right combination lamp A004 Front right turning signal
NO. Color Function Remark NO. Color Function Remark
Yellow - Low beam power 1 - - Blocked
1
black supply 2 Black Earthing
High beam pow- Power 71
2 Purple 3 Black-green
er supply supply
Optical axis ad-
Yellow -
3 justing motor
black
power supply
Position light
4 Blue
power supply
5 Black Earthing
Optical axis ad-
6 Green justing signal in-
put
A005 Front right fog lamp
NO. Color Function Remark
1 Pink Power supply
2 Black Earthing
