P. 2351

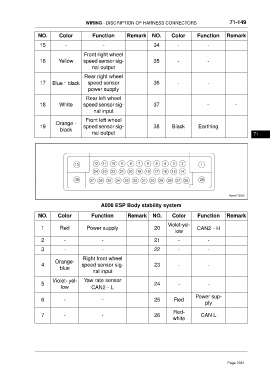

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-149
NO. Color Function Remark NO. Color Function Remark
15 – – 34 - -
Front right wheel
16 Yellow speed sensor sig- 35 - -
nal output
Rear right wheel
17 Blue–black speed sensor 36 - -
power supply
Rear left wheel
18 White speed sensor sig- 37 – –
nal input
Front left wheel
Orange -
19 speed sensor sig- 38 Black Earthing
black
nal output 71
A006 ESP Body stability system
NO. Color Function Remark NO. Color Function Remark
Violet-yel-
1 Red Power supply 20 CAN2–H
low
2 - - 21 - -
3 - - 22 - -
Right front wheel
Orange-
4 speed sensor sig- 23 - -
blue
nal input
Violet- yel- Yaw rate sensor
5 24 – –
low CAN2–L
Power sup-
6 - – 25 Red
ply
Red-
7 - - 26 CAN L
white
