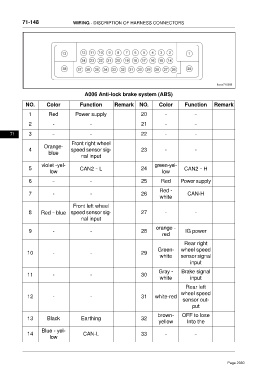

Page 2350 - Foton Workshop Manual - Tunland (AT)

71-148 WIRING - DISCRIPTION OF HARNESS CONNECTORS

A006 Anti-lock brake system (ABS)

NO. Color Function Remark NO. Color Function Remark

1 Red Power supply 20 – –
2 - – 21 – –

71 3 – – 22 - -

Front right wheel
Orange-
4 speed sensor sig- 23 - -
blue
nal input
violet -yel- green-yel-
5 CAN2–L 24 CAN2–H
low low

6 – – 25 Red Power supply
Red -
7 - - 26 CAN-H
white

Front left wheel
8 Red–blue speed sensor sig- 27 - -
nal input

orange -
9 - - 28 IG power
red
Rear right
Green- wheel speed
10 - - 29
white sensor signal
input
Gray - Brake signal
11 - - 30
white input
Rear left
wheel speed
12 - - 31 white-red
sensor out-
put
brown- OFF to lose
13 Black Earthing 32
yellow Into the

Blue - yel-
14 CAN-L 33 – –
low

Page 2350
