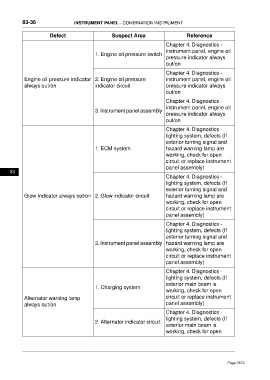

83-36 INSTRUMENT PANEL - COMBINATION INSTRUMENT

Defect Suspect Area Reference
Chapter 4. Diagnostics -
instrument panel, engine oil
1. Engine oil pressure switch
pressure indicator always
out/on
Chapter 4. Diagnostics -
Engine oil pressure indicator 2. Engine oil pressure instrument panel, engine oil
always out/on indicator circuit pressure indicator always
out/on

Chapter 4. Diagnostics -
instrument panel, engine oil
3. Instrument panel assembly
pressure indicator always
out/on

Chapter 4. Diagnostics -
lighting system, defects (If
exterior turning signal and
1. ECM system hazard warning lamp are
working, check for open
circuit or replace instrument
panel assembly)
83
Chapter 4. Diagnostics -
lighting system, defects (If
exterior turning signal and
Glow indicator always out/on 2. Glow indicator circuit hazard warning lamp are
working, check for open
circuit or replace instrument
panel assembly)

Chapter 4. Diagnostics -
lighting system, defects (If
exterior turning signal and
3. Instrument panel assembly hazard warning lamp are
working, check for open
circuit or replace instrument
panel assembly)
Chapter 4. Diagnostics -
lighting system, defects (If
exterior main beam is
1. Charging system
working, check for open
Alternator warning lamp circuit or replace instrument
always out/on panel assembly)
Chapter 4. Diagnostics -
lighting system, defects (If
2. Alternator indicator circuit
exterior main beam is
working, check for open
