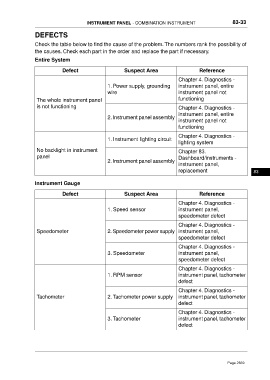

INSTRUMENT PANEL - COMBINATION INSTRUMENT 83-33

DEFECTS

Check the table below to find the cause of the problem. The numbers rank the possibility of
the causes. Check each part in the order and replace the part if necessary.
Entire System

Defect Suspect Area Reference

Chapter 4. Diagnostics -
1. Power supply, grounding instrument panel, entire
wire instrument panel not
The whole instrument panel functioning
is not functioning Chapter 4. Diagnostics -
instrument panel, entire
2. Instrument panel assembly
instrument panel not
functioning

Chapter 4. Diagnostics -
1. Instrument lighting circuit
lighting system
No backlight in instrument Chapter 83.
panel Dashboard/instruments -
2. Instrument panel assembly
instrument panel,
replacement 83

Instrument Gauge

Defect Suspect Area Reference

Chapter 4. Diagnostics -
1. Speed sensor instrument panel,
speedometer defect

Chapter 4. Diagnostics -
Speedometer 2. Speedometer power supply instrument panel,
speedometer defect

Chapter 4. Diagnostics -
3. Speedometer instrument panel,
speedometer defect
Chapter 4. Diagnostics -
1. RPM sensor instrument panel, tachometer
defect

Chapter 4. Diagnostics -
Tachometer 2. Tachometer power supply instrument panel, tachometer
defect

Chapter 4. Diagnostics -
3. Tachometer instrument panel, tachometer
defect
