P. 2566

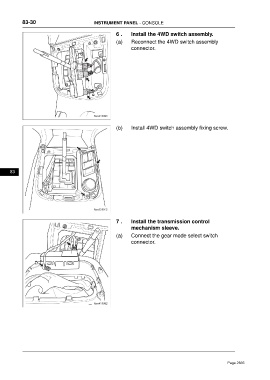

83-30                            INSTRUMENT PANEL - CONSOLE

                                                      6 .    Install the 4WD switch assembly.
                                                      (a)    Reconnect the 4WD switch assembly
                                                             connector.





















                                                      (b)    Install 4WD switch assembly fixing screw.










      83












                                                      7 .    Install the transmission control
                                                             mechanism sleeve.
                                                      (a)    Connect the gear mode select switch
                                                             connector.
