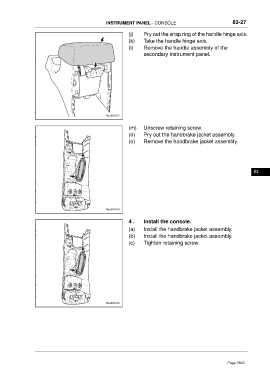

INSTRUMENT PANEL - CONSOLE 83-27
(j) Pry out the snap ring of the handle hinge axis.
(k) Take the handle hinge axis.
(l) Remove the handle assembly of the
secondary instrument panel.
(m) Unscrew retaining screw.
(n) Pry out the handbrake jacket assembly.
(o) Remove the handbrake jacket assembly.
83
4 . Install the console.
(a) Install the handbrake jacket assembly.
(b) Install the handbrake jacket assembly.
(c) Tighten retaining screw.
