Page 2560 - Foton Workshop Manual - Tunland (AT)
P. 2560

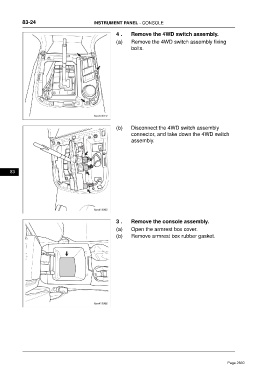

83-24 INSTRUMENT PANEL - CONSOLE
4 . Remove the 4WD switch assembly.
(a) Remove the 4WD switch assembly fixing
bolts.
(b) Disconnect the 4WD switch assembly
connector, and take down the 4WD switch
assembly.
83
3 . Remove the console assembly.
(a) Open the armrest box cover.
(b) Remove armrest box rubber gasket.
Page 2560
