Page 2559 - Foton Workshop Manual - Tunland (AT)
P. 2559

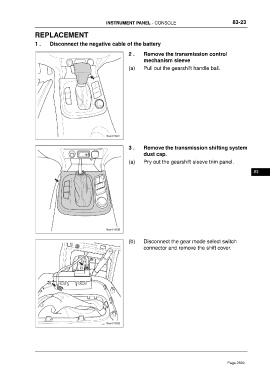

INSTRUMENT PANEL - CONSOLE 83-23
REPLACEMENT
1 . Disconnect the negative cable of the battery
2 . Remove the transmission control
mechanism sleeve
(a) Pull out the gearshift handle ball.
3 . Remove the transmission shifting system
dust cap.
(a) Pry out the gearshift sleeve trim panel.
83
(b) Disconnect the gear mode select switch
connector and remove the shift cover.
Page 2559
