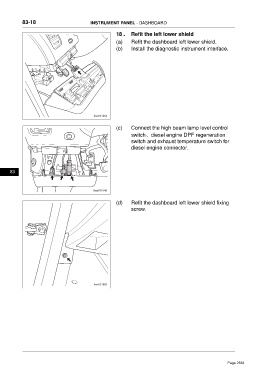

83-18 INSTRUMENT PANEL - DASHBOARD
18 . Refit the left lower shield
(a) Refit the dashboard left lower shield.
(b) Install the diagnostic instrument interface.
ftwx831064
(c) Connect the high beam lamp level control
switch、diesel engine DPF regeneration
switch and exhaust temperature switch for
diesel engine connector.
83
ftwx831046
(d) Refit the dashboard left lower shield fixing
screw.
ftwx831063
