Page 2551 - Foton Workshop Manual - Tunland (AT)
P. 2551

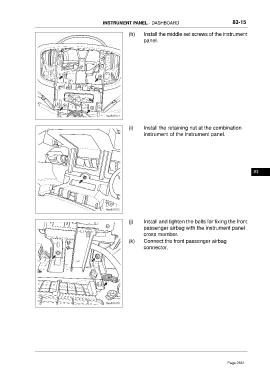

INSTRUMENT PANEL - DASHBOARD 83-15
(h) Install the middle set screws of the instrument
panel.
ftwx831071
(i) Install the retaining nut at the combination
instrument of the instrument panel.
83
ftwx831072
(j) Install and tighten the bolts for fixing the front
passenger airbag with the instrument panel
cross member.
(k) Connect the front passenger airbag
connector.
ftwx831070
Page 2551
