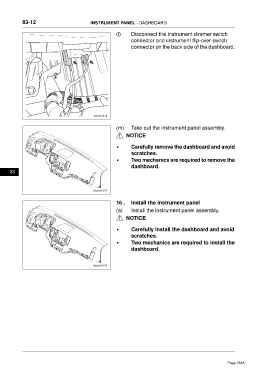

83-12 INSTRUMENT PANEL - DASHBOARD

(l) Disconnect the instrument dimmer switch
connector and instrument flip-over switch
connector on the back side of the dashboard.

ftwx831078

(m) Take out the instrument panel assembly.
NOTICE

• Carefully remove the dashboard and avoid
scratches.
• Two mechanics are required to remove the
dashboard.
83 ARBAG

ftwx831079

16 . Install the instrument panel
(a) Install the instrument panel assembly.
NOTICE

• Carefully install the dashboard and avoid
scratches.
• Two mechanics are required to install the
dashboard.
ARBAG
ftwx831079
