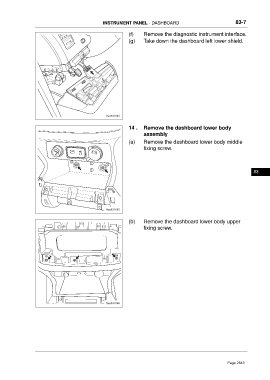

INSTRUMENT PANEL - DASHBOARD 83-7
(f) Remove the diagnostic instrument interface.
(g) Take down the dashboard left lower shield.
ftwx831064
14 . Remove the dashboard lower body
assembly
(a) Remove the dashboard lower body middle
fixing screw.
83
ftwx831065
(b) Remove the dashboard lower body upper
fixing screw.
ftwx831066
