P. 2544

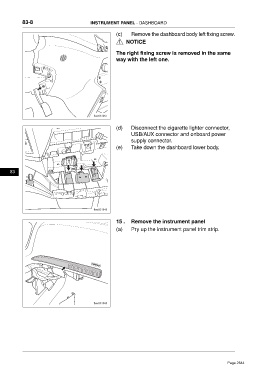

83-8 INSTRUMENT PANEL - DASHBOARD
(c) Remove the dashboard body left fixing screw.
NOTICE
The right fixing screw is removed in the same
way with the left one.
ftwx831067
(d) Disconnect the cigarette lighter connector,
USB/AUX connector and onboard power
supply connector.
(e) Take down the dashboard lower body.
83
ftwx831048
15 . Remove the instrument panel
(a) Pry up the instrument panel trim strip.
ftwx831068
