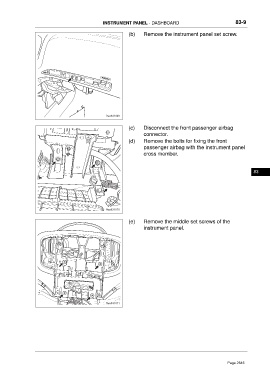

INSTRUMENT PANEL - DASHBOARD                                83-9

                                                           (b)    Remove the instrument panel set screw.





















                                                 ftwx831069


                                                           (c)    Disconnect the front passenger airbag
                                                                  connector.
                                                           (d)    Remove the bolts for fixing the front
                                                                  passenger airbag with the instrument panel
                                                                  cross member.



                                                                                                                     83









                                                 ftwx831070

                                                           (e)    Remove the middle set screws of the
                                                                  instrument panel.



















                                                 ftwx831071
