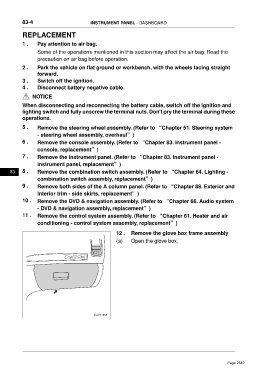

83-4 INSTRUMENT PANEL - DASHBOARD

REPLACEMENT

1 . Pay attention to air bag.
Some of the operations mentioned in this section may affect the air bag. Read the
precaution on air bag before operation.
2 . Park the vehicle on flat ground or workbench, with the wheels facing straight
forward.
3 . Switch off the ignition.
4 . Disconnect battery negative cable.

NOTICE
When disconnecting and reconnecting the battery cable, switch off the ignition and
lighting switch and fully unscrew the terminal nuts. Don't pry the terminal during these
operations.
5 . Remove the steering wheel assembly. (Refer to “Chapter 51. Steering system

- steering wheel assembly, overhaul”)
6 . Remove the console assembly. (Refer to “Chapter 83. Instrument panel -
console, replacement”)
7 . Remove the instrument panel. (Refer to “Chapter 83. Instrument panel -
instrument panel, replacement”)
83 8 . Remove the combination switch assembly. (Refer to “Chapter 64. Lighting -
combination switch assembly, replacement”)
9 . Remove both sides of the A column panel. (Refer to “Chapter 88. Exterior and
interior trim - side skirts, replacement”)
10 . Remove the DVD & navigation assembly. (Refer to “Chapter 66. Audio system
- DVD & navigation assembly, replacement”)
11 . Remove the control system assembly. (Refer to “Chapter 61. Heater and air
conditioning - control system assembly, replacement”)

12 . Remove the glove box frame assembly

(a) Open the glove box.

ftwx831058
