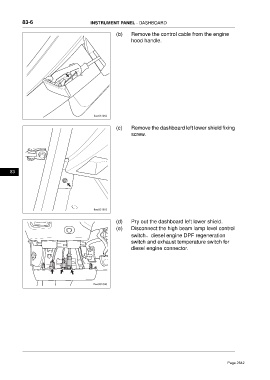

83-6 INSTRUMENT PANEL - DASHBOARD
(b) Remove the control cable from the engine
hood handle.
ftwx831062
(c) Remove the dashboard left lower shield fixing
screw.
83
ftwx831063
(d) Pry out the dashboard left lower shield.
(e) Disconnect the high beam lamp level control
switch、diesel engine DPF regeneration
switch and exhaust temperature switch for
diesel engine connector.
ftwx831046
